1970-1981 GM F-Body Handling Kit, 2″ Lowering, Stage 3.5

$3,153.99
Free Shipping!

DESCRIPTION

UMI’s Stage 3.5 handling kit features everything you need to transform your 2nd Gen F-Body from a land yacht into a modern handling, fun to drive corner carver. Viking front hybrid coilovers control attitude and altitude and feature a cornering oriented spring rate as well as 19 damping settings in both compression and rebound. Caster corrected upper and lower a-arms, combined with a tall ball joint in the upper arm, improves caster for stability as well as camber gain for cornering. The 2nd Gen platform responds nicely to the heavy duty 1-5/16″ front sway bar which flattens cornering and makes the car much more fun to drive. The UMI designed leafs are delivered with the front bushing installed and the kit includes laser cut shackles with Delrin bushings for a crisp, high performance ride. Also included are high quality polyurethane isolator pads as well as heavy duty Made In USA U-bolts and hardware. The rear suspension damping is handled by Viking double adjustable smooth body shocks with 19 compression and 19 rebound settings and pair nicely with the fronts. This kit is suitable for daily driving as well as corner carving and is 100% Made In USA of USA materials.

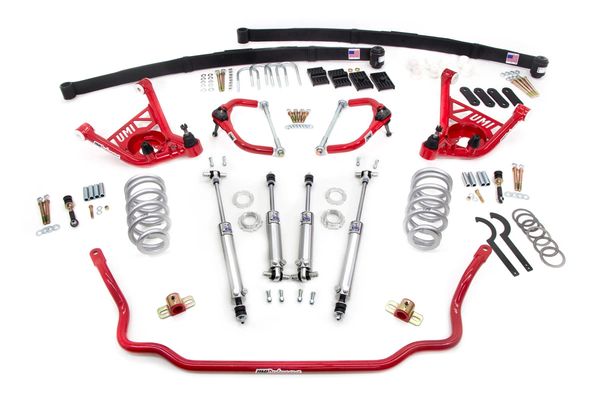

Includes:

  • 2651 Smooth riding polyurethane bushing lower a-arm features increased caster for stability.
  • 2656-1 Adjustable rod ends and CrMo cross shaft upper a-arm features additional caster for stability as well as ½” taller upper ball joint to improve cornering. Minimizes need for shims.
  • A225-650R Viking hybrid coilover kit features 650 lb/in spring rate suitable for corner carving, adjustable ride height, bearing style t-bar for durability, and adjustable compression and reobund damping (19 clicks each).
  • 7917-101 Thrust bearings to reduce friction in hybrid coilover
  • 7995-101 Spanner wrench for easy height adjustment
  • 4067 1-5/16″ extra heavy duty, ultra performance front sway bar resists body roll and includes bushings and endlinks.
  • 2620 2” drop leaf springs (175 lb/in) come loaded with front bushings. Spring rate is high performance yet daily driver worthy.
  • 2625 Laser cut shackle kit with high performance polyurethane bushings are a great mix of performance and comfort.
  • 2627 Heavy duty U-bolts, front bolt and polyurethane axle pads improve performance and replace rusty, worn out components.
  • B219 Viking rear smooth body shocks feature 19 independent clicks of both compression and rebound adjustment
  • 100% Made In USA
