1970-1981 GM F-Body Handling Kit, 2″ Lowering, Stage 2.5

$2,953.99
Free Shipping!

DESCRIPTION

UMI’s Stage 2.5 handling kit features everything you need to transform your 2nd Gen F-Body from a land yacht into a modern handling, fun to drive muscle car. Viking front hybrid coilovers feature a moderate spring rate as well as 19 damping settings in both compression and rebound. Caster corrected upper and lower a-arms, combined with a tall ball joint in the upper arm, improves caster for stability as well as camber gain for cornering. The 2nd Gen platform responds nicely to the heavy duty 1-1/4″ front sway bar which prevents body roll and makes the car much more fun, and easy, to drive. The UMI designed leafs are delivered with the front bushing installed and the kit includes laser cut shackles with polyurethane bushings for a comfortable ride. Also included are high quality polyurethane isolator pads as well as heavy duty Made In USA U-bolts and hardware. The rear suspension damping is handled by Viking double adjustable smooth body shocks with 19 compression and 19 rebound settings and pair nicely with the fronts. This kit is suitable for daily driving as well as corner carving and is 100% Made In USA of USA materials.

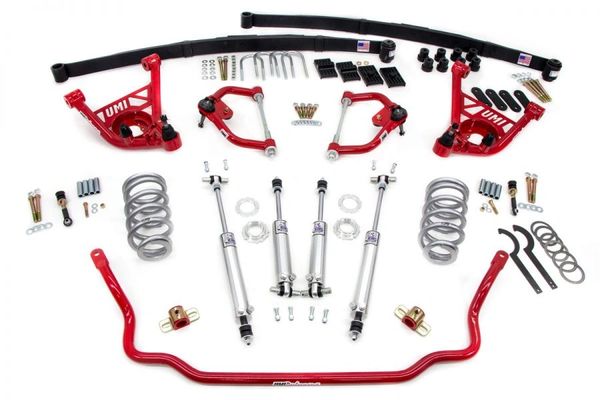

Includes:

  • 2651-B Smooth riding polyurethane bushing lower a-arm features increased caster for stability.
  • 2653-1-B Delrin bushing CrMo cross shaft upper a-arm features additional caster for stability as well as ½” taller upper ball joint to improve cornering.
  • A205-550R Viking hybrid coilover kit features 550 lb/in rate with adjustable ride height, poly bushings for street comfort, and adjustable compression and rebound damping (19 clicks each).
  • 7917-101 Thrust bearings to reduce friction in hybrid coilover
  • 7995-101 Spanner wrench for easy height adjustment
  • 4035 1-¼” front sway bar resists body roll and includes bushings and endlinks.
  • 2620 2” drop leaf springs (175 lb/in) come loaded with front bushings. Spring rate is high performance yet daily driver worthy.
  • 2625 Laser cut shackle kit with high performance polyurethane bushings are a great mix of performance and comfort.
  • 2627 Heavy duty U-bolts, front bolt and polyurethane axle pads improve performance and replace rusty, worn out components.
  • B219 Viking shocks feature 19 independent clicks of both compression and rebound adjustment
  • 100% Made In USA
