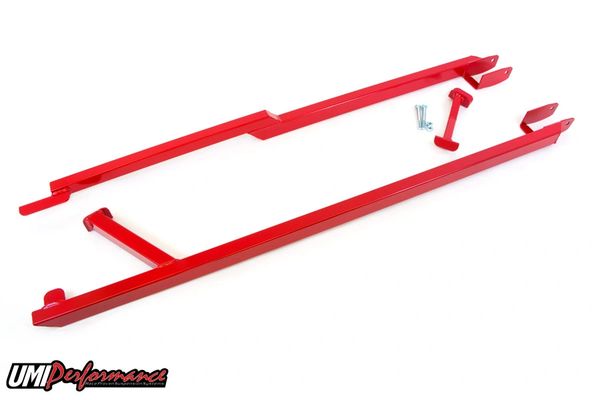

UMI 1982 - 1992 GM F-Body Boxed Style Weld-In Subframe Connectors

Minimize chassis flex and increase performance capabilities on your 82-92 GM F-Body with boxed style weld-in subframe connectors from UMI Performance. Subframe connectors are a must chassis upgrade when racing and hard driving habits are present. They greatly improve your car's handling ability while reducing t-top squeaks, dash rattles and quarter panel flexing. Subframe connectors essentially tie the front and rear steel subframes together, resulting in a stiffened and strengthened chassis; allowing better weight transfer and improved traction when launching. When strength is a concern, square tubing has greater torsion resistance over tubular designs. Subframes do not effect ground clearance and weld-in style requires no bolts to tighten ever and less chance of flex compared to bolt-in types.

Our subframe connectors for the third generation F-Body are one of the strongest set-ups on the market. This unique design utilizes a 3 piece design, allowing (6) major weld points through out the chassis of the vehicle. Subframe connectors fit hard top, T-Top and convertible models.

Features:
- Built using 2.000" x 1.250" x 0.120" Mild Steel Rectangular Tubing
- CNC Machined 0.188" Thick Mild Steel Mounting Points
- Uses Control Arm Mounting Point for Increased Strength
- Precision MIG Welded Construction
- Brilliant Durable Powder Coat Finish


Installation:
Weld-in only, installs in approximately 2 hours, all necessary hardware and detailed installation instructions included.
