RideTech 1967-1969 Chevy Camaro, Firebird - CoilOver System - Pin Spindle kit
Complete Coil-Over kit 1967-1969 Camaro / Firebird, CoilOver System - Pin Spindle
The RideTech coil-over package includes everything you need to completely upgrade your existing suspension. The package contains front upper and lower control-arms, a rear 4-link, and 4 single adjustable coil-overs for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes out all of the guess work when purchasing a new suspension. RideTech has spent numerous hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
DESCRIPTION

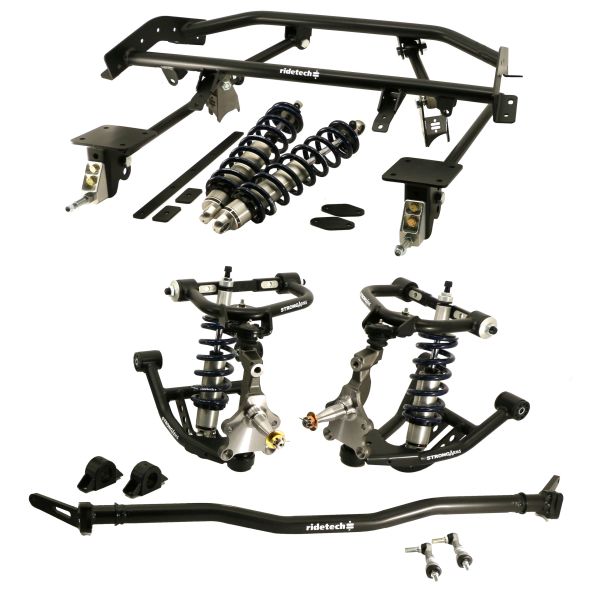

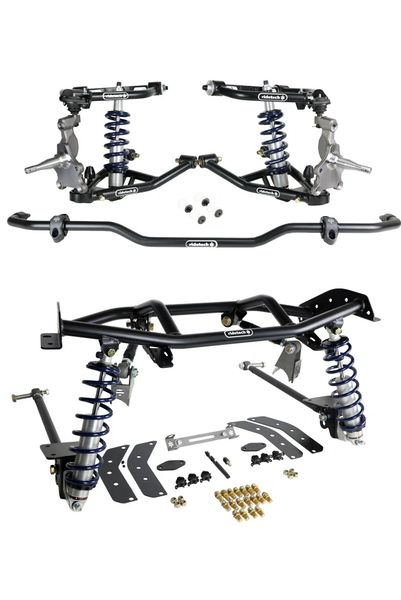

The RideTech 1967-1969 Camaro / Firebird CoilOver package includes everything you need to completely upgrade your existing suspension. The package contains front upper and lower control-arms, tall spindles, front MuscleBar, a rear 4-Link, and 4 HQ Series CoilOvers for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
- RideTech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel.
- The Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
The Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in AutoCross or Road Course Racing? ask about SHOCK UPGRADES!
This Front MucleBar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
- The Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with minitubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
The RideTech 1967-1969 Camaro / Firebird CoilOver package includes everything you need to completely upgrade your existing suspension. The package contains front upper and lower control-arms, tall spindles, front MuscleBar, a rear 4-Link, and 4 HQ Series CoilOvers for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
- RideTech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel.
- The Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
The Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in AutoCross or Road Course Racing? ask about SHOCK UPGRADES!
This Front MucleBar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
- The Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with minitubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
4-Link Features
RideTech Bolt On 4-Link
The area of largest improvement is the handling and cornering performance. The RideTech 4-Link eliminates the oem leafspring and replaces them with a 4 link rear suspension. The 4 link bars offer more precise positioning of the rear axle to eliminate flexing and increase stability through the corners. When combined with coil-overs your vehicle can now enjoy the benefits of modern handling and ride quality technology.
• Lowers vehicle ride height
• Mounting hardware to maintain ground & tire clearance, driveline angles, and load capacities
• Bolt-on installation (no fabrication required)
• Greatly improved handling performance
• Ultimate ride quality.
Spindle Features
RideTech (tall) spindles - It is called a TALL Spindle because the upper ball joint is raised 1-1/2". Different from the factory design, it yields a better camber change during suspension movement. Pivot points are determined by the ball joints on the spindles and bushing locations on the frame, not the control arms. These spindles are STEEL, the strongest ones in the industry.
Ride Quality Shock Series Features
The Ride Quality ("RQ") series is a great entry level solution. It still retains all the mounting and installation advantages of the other shock series. With fixed shock valving, the RQ series is designed to optimize ride quality, leaving out the guess work.
The quality of the monotube aluminum body shock will last for years of reliable service, and is an excellent choice for the price conscious buyer.
Features:
- Fixed shock valving is designed to optimize ride quality
- Aluminum impact forged construction provides leak free operation
- A great option for increasing ride quality and performance on a budget
- Monotube design for superior oil control
- High quality bearing mounts and stud style mounts for years of reliable service
