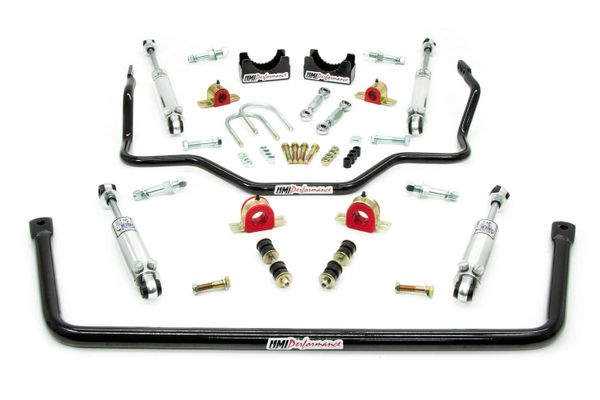

1973-1987 GM C10 Handling Kit, Stage 1.5

Stage 1.5 kit provides exceptional ride and handling. Heavy duty front sway bar and three way adjustable rear sway bar provides excellent sway control and handling balance. Versatile double adjustable Viking shocks are great for handling, drag racing and corner carving. Suitable for factory ride height trucks as well as lowered truck when UMI P/N 6411 is added. Made In USA.

• Power Tour and daily driver proven
• 1-3/8″ tubular front sway bar
• Three way adjustable 1″ solid rear sway bar
• Viking shocks included
• 19 positions in both compression and rebound (361 total combinations)
• Front Shock Extended Length (in): 14.240
• Front Shock Collapsed Length (in): 10.040
  • 11-5/8″ to 12-5/8″ front shock ride height range
• Rear Shock Extended Length (in): 21.360
• Rear Shock Collapsed Length (in): 13.610
  • 16-5/8″ to 18-3/8″ rear shock ride height range
• Works with stock height trucks
• Works with lowered trucks when UMI 6411 rear shock relocation is added
• Minor drilling is required for installation
•
