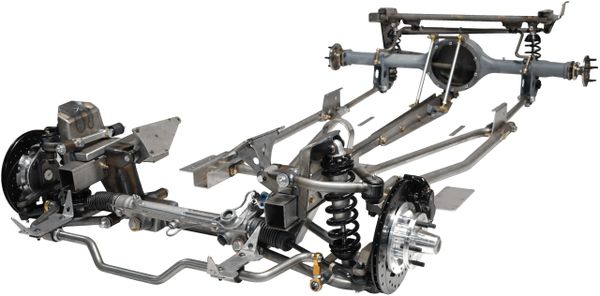

1964.5-1970 Ford Mustang Suspension Rolling Package


1964.5-1970 Ford Mustang Suspension Rolling Package

The Pro Touring IFS is meticulously engineered for enhanced performance, strength, control, drivability, and handling. It maximizes ground clearance while lowering your vehicle, with custom spindle geometry for better control over camber gain and scrub radius compared to traditional Mustang II spindles.

The Torque Arm rear suspension eliminates binding in cornering, ensuring smooth articulation controlled by coil-over shocks and a rear sway bar. This kit provides a lowered stance, superior rear axle control, and significantly improved handling.

Pro Touring IFS:
• Complete tubular bolt-in front clip
• Wilwood 12” Drilled Rotors 4-Piston Calipers
• Ridetech Single Adjustable Coil-Over Shocks
• Black powder coated springs
• 1” Performance anti-roll bar
• 1⅛” x .156w U.S. DOM Steel upper & lower tubular A-arms
• Power rack and pinion
• Spindles (2” drop)
• Aluminum inner fender panels
• SBF Engine Mounts

Bolt-in multi position transmission mount is included

• Greasable urethane bushings

Torque Arm Rear Suspension:
• Ridetech single adjustable coil-over shocks
• 1¼” High performance link bars
• 1¾” Torque arm with slider & reinforcing flanges
• 1½” Coil-over crossmember with channel brackets
• 1¼” Adjustable Panhard bar with LH & RH rod ends
• 31 Spline forged axles with Timken set 20 bearings
• 1¾” Crossmember with drive shaft loop
• 1¾” Sub-frame connectors
• Complete ¾” rear anti-roll bar kit
• Bolt-on trailing arm channel brackets
• Floor reinforcing plates and hardware
• Greasable urethane bushing
• New 9” Ford Axle Housing with all torque arm brackets installed
