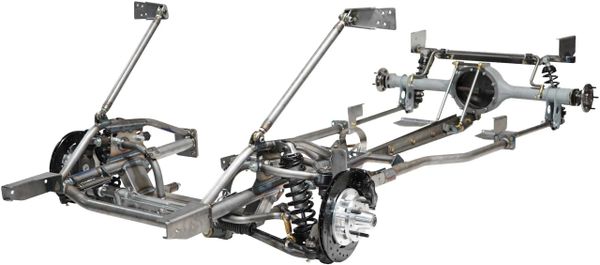

1962-1967 Chevy Nova Suspension Rolling Package
1962-1967 Chevy Nova Suspension Rolling Package
The Pro Touring IFS guarantees peak handling, weight reduction, and robustness. We prioritized boosting ground clearance and performance. It stands out as the sole clip with dual camber curves, excelling on streets, drag strips, autocross tracks, or road races. Built on our custom-designed spindle with bolt-on steering arms, it ensures the best geometry for optimal comfort and performance. TCI’s unique tubular narrowed rail design enables the use of the widest tires.
The Torque Arm rear suspension incorporates a front telescoping slider, allowing the car’s handling to be controlled by coil-over shocks and the rear sway bar, eliminating suspension binding variables. This kit ensures a lowered stance, superior rear axle control, and significantly improved handling.
Pro Touring IFS:
• Complete tubular bolt-in front clip
• Wilwood 12” Drilled Rotors 4-Piston Calipers
• Ridetech Single Adjustable Coil-Over Shocks
• Black powder coated springs
• 1” Performance anti-roll bar
• 1⅛” x .156w U.S. DOM Steel upper & lower tubular A-arms
• Power rack and pinion
• Spindles (2” drop)
• Aluminum inner fender panels
• Engine Brackets for SBC, BBC, LS, and LT applications
• Bolt-in multi position transmission mount is included
• Greasable urethane bushings
Torque Arm Rear Suspension:
• Ridetech single adjustable coil-over shocks
• 1¼” High performance link bars
• 1¾” Torque arm with slider & reinforcing flanges
• 1½” Coil-over crossmember with channel brackets
• 1¼” Adjustable Panhard bar with LH & RH rod ends
• 31 Spline forged axles with Timken set 20 bearings
• 1¾” Crossmember with drive shaft loop
• 1¾” Sub-frame connectors
• Complete ¾” rear anti-roll bar kit
• Bolt-on trailing arm channel brackets
• Floor reinforcing plates and hardware
• Greasable urethane bushing
• New 9” Ford Axle Housing with all torque arm brackets installed
