Baer Remaster Black, Left Port, .9375" (15/16") manual brake
$435.00

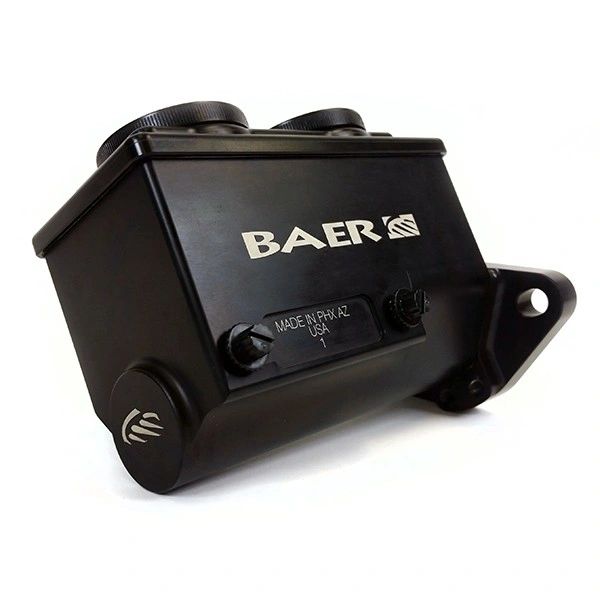

Baer Remaster Black, Left Port, .9375" (15/16") manual brake
This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16" bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available, see below.
Remaster Specifications:
Remaster Body: Hard Anodized Black
Remaster lid: Hard Anodized Black
Remaster lid: Hard Anodized Black
Remaster Caps: Hard Anodized Black
Bore Size: 15/16"
Bore Size: 15/16"
Area: 0.69"
Stroke: 1.1"
Volume Ratio: 2:1
Reservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoir
Port Size: 3/8-24 Inverted flare w/insert or straight w/o inserts
Port Exit: Left side
Flange Type: 2 Bolt GM/Ford
