10.50" Classic Series Rear (Staggered Shock) Brake System
$595.00
10.50" Classic Series Rear (Staggered Shock) Brake System

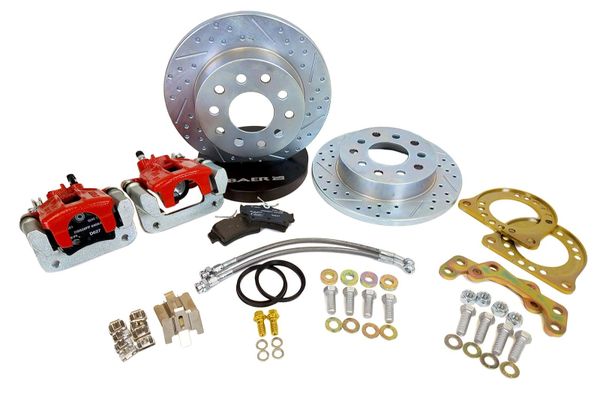

This system features a single piston, integral park brake caliper mounted to a 10.50", 1-piece slot, dimpled and zinc plated rotor. The caliper comes with a red powder coated finish, includes dust/weather seal and uses the popular D627 pad type. The system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The Baer Classic system is a cost effective, full feature drum to disc conversions and fits most 14" or larger wheels.
| Rotor Size/Type:
10.50" x .504", 1-piece
| Caliper/Piston Count/Mount Type:
Classic Rear / 1-piston / Floating w/anchor
| System Includes:
Calipers, Brake pads, Rotors, Brackets, stainless braided brake hoses & system hardware. Park brake cables not included but are available separately for certain applications
| Notes:
- Designed to be used with GM small 10/12 bolt rear ends with C-clips, C-clip eliminators or bearing on axle (BOP).
- For vehicles with Staggered rear shocks
- System has 5x4.5" and 5x4.75" bolt pattern
- 15/16" master cylinder recommended
- Adjustable proportioning valve recommended
| Applications:
- 1968-69 GM F-Body card with OE 10/12 bolt rear end with Staggered rear shocks
- 1968-74 GM X-Body card with OE 10/12 bolt rear end with Staggered rear shocks
- Vehicles using GM small 10/12 bolt rear end & Staggered shocks
